To Connect 4 Recessed Lights Together - Closet Recessed Lighting Trim Retrofit With Chain ... : I need to install two housings for recessed lights and run them both off of one switch.

To Connect 4 Recessed Lights Together - Closet Recessed Lighting Trim Retrofit With Chain ... : I need to install two housings for recessed lights and run them both off of one switch.. These arrows must point towards each other. See how to make the connection inside the the recessed light fixture the right. These arrows must point towards each other. To install these, each light in a zone was connected to each other by connecting red to red and black to black. One switch will control 6 recessed lights and the other switch will control (9) 3 recessed lights that will be mounted in my bulkheads.

Run cable from the switch box to the light fixture. Halo rl4 series 4 in. Cut a piece of nm cable and strip off the insulation to identify each of the interior wires. Pull the switch from the box and loosen one of the terminal screws on the switch to remove one of the black wires. ④share other devices to control the smart wifi recessed lights together;

If there is a ground terminal on the light, do that as well, otherwise just connect the incoming and outgoing ground wires together.

Do the same with the white wires. Begin by wiring the black wires on the recessed light to the black wire on the romex electrical wire. If there is a ground terminal on the light, do that as well, otherwise just connect the incoming and outgoing ground wires together. These specialized lights can give a room an elegant appearance, flooding the area with light, focusing illumination on specific features or work spaces, or providing a gentle glow to set the … Attach the connections with wire caps and run the pieces of wire between each recessed light. A daisy chain connects multiple light fixtures to the same circuit. Add more cable between other fixtures that are to be operated on the same switch. Led strip lights are designed to run continuously up to a certain limit due to voltage drop and current load issues. I then have 3 wire from switch box to ceiling fan, no light fixture on fan. Except for the first light fixture box, you should have three black wires in the connection. Connect the wires to the corresponding color wires in the electrical box. Basically the simplest way to have multiple lights on one switch is to run a power supply wire to the switch first. One switch will control 6 recessed lights and the other switch will control (9) 3 recessed lights that will be mounted in my bulkheads.

How to connect led strip lights in series? Learn the correct way to wire recessed light fixtures in your kitchen ceiling. Then i have 2 wire from ceiling fan to 6 recessed cans that i want to switch from origination point being the switch box and operate fan with pull chain only. I would like to use 14/2 for all of the lighting. It's useful for recessed lighting, illuminating rooms, and connecting lights to the same switch.

These specialized lights can give a room an elegant appearance, flooding the area with light, focusing illumination on specific features or work spaces, or providing a gentle glow to set the …

Connect the driver cable plug to the plug on your light. Soft white selectable cct integrated led recessed light with retrofit baffle white trim. ② control recessed lighting in groups; Halo rl4 series 4 in. One switch will control 6 recessed lights and the other switch will control (9) 3 recessed lights that will be mounted in my bulkheads. Pull the clips in so they do not protrude outside the can. This is what i put in my own garage and the results are amazing! Its connection with rgb strip lights is easy, by joining the 4 pin connectors on the controller with the 4 pin connector on light strip together. Pay close attention to the arrows located on plug (there is one small arrow molded into the plug on the driver side of the cable). At each light you'll connect the entering and exiting black wires together, as well as 1 terminal on the light. You may need to bang on the screwdriver with your fist or a hammer to set the tabs to lock against the ceiling. A handy way to approximate how many downlights you will need is using this method: ⑤with memory function will stay at the last setting you choose while turn on.

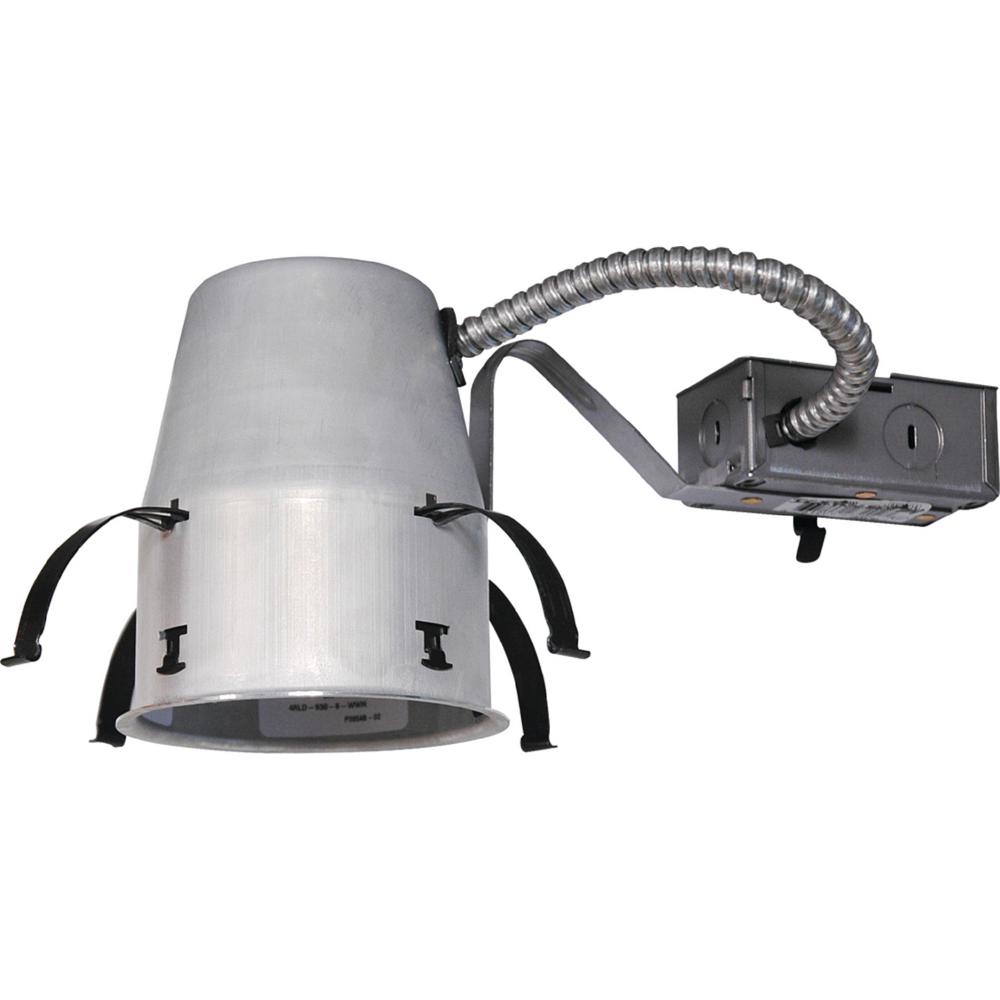

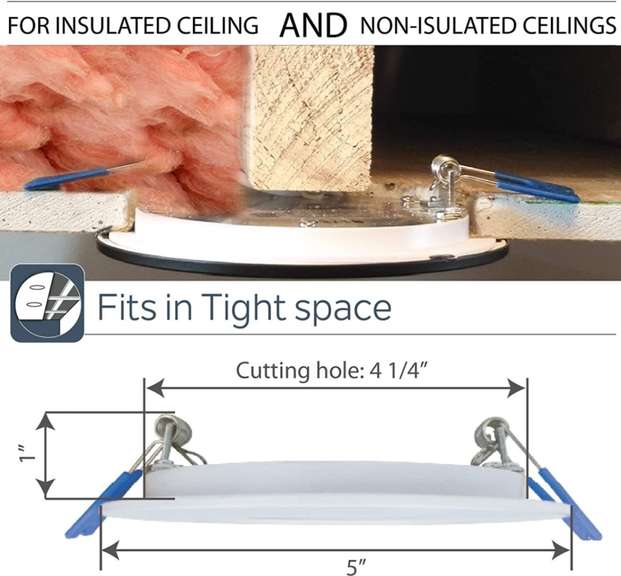

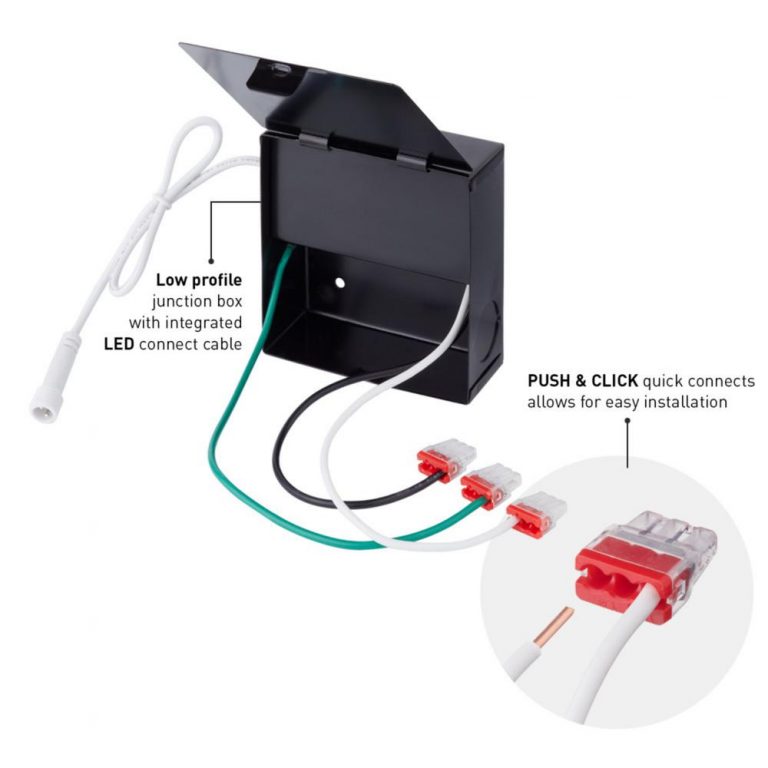

If there is a ground terminal on the light, do that as well, otherwise just connect the incoming and outgoing ground wires together. To wire this light, all you have to do is strip the wires coming into the box back 1/2″ and push the ends into the right slots. Cut a piece of nm cable and strip off the insulation to identify each of the interior wires. Slip the can's box into the hole, and then push the can body up into the hole until its flange is tight to the ceiling. Connect the three green wires together, then the three.

Twist a wire connector onto the set of white wires to secure them together.

If there is a ground terminal on the light, do that as well, otherwise just connect the incoming and outgoing ground wires together. ① make your own schedule to turn off/on recessed light; You may need to bang on the screwdriver with your fist or a hammer to set the tabs to lock against the ceiling. We are in the middle of a kitchen remodel. Pay close attention to the arrows located on plug (there is one small arrow molded into the plug on the driver side of the cable). I have 6 halo 991ct ic 4 recessed lighting fixtures. ② control recessed lighting in groups; Use the same technique to connect the ground wires to the ground terminal. To install these, each light in a zone was connected to each other by connecting red to red and black to black. Use the wire pliers and twist the black wires together in each of the light boxes, this includes the eight inch jumper wire or pigtail. Then pigtail new hot and neutral wires to the original light fixtures. Remove the two screws holding the recessed light switch in the electrical box. Mount the light most models of recessed light housing have four clips that clamp the can to the ceiling by pushing down on top of the drywall.
